SMT Metric Threaded Standoffs.

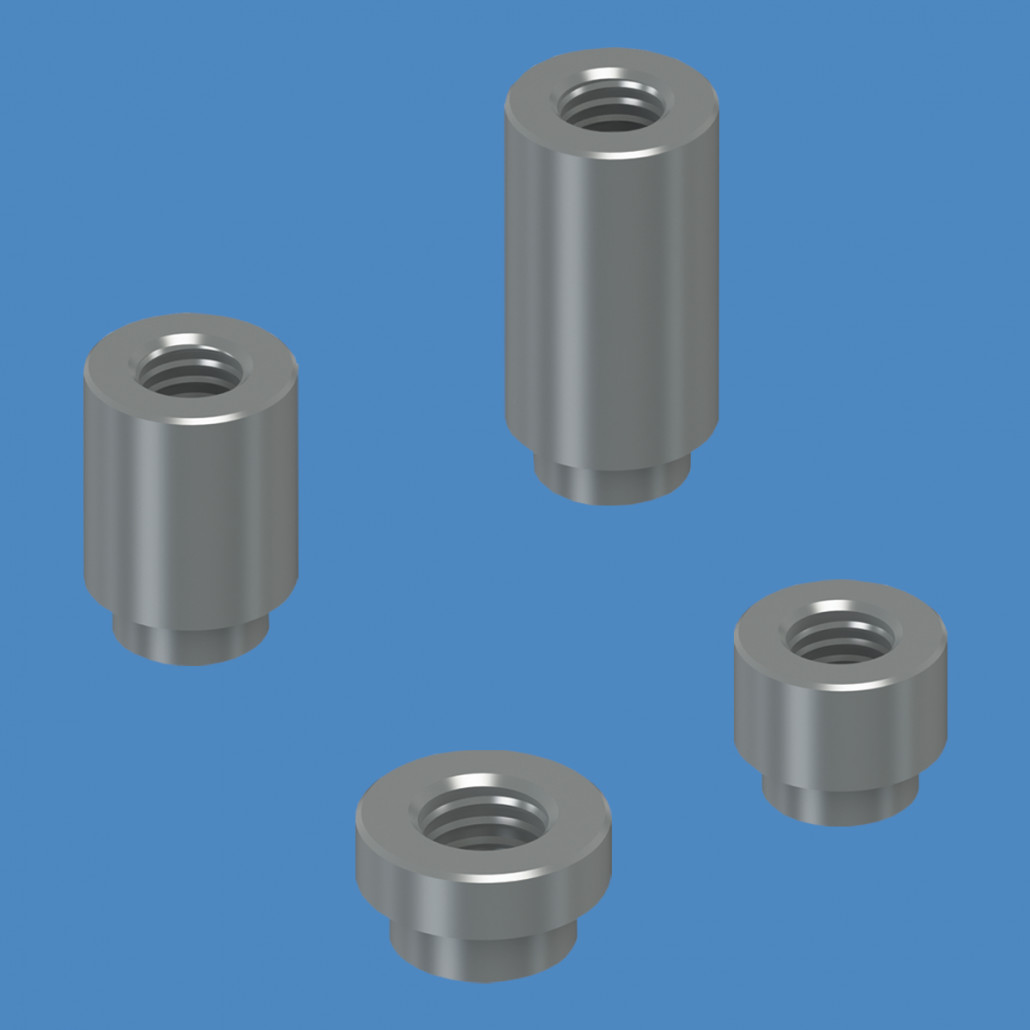

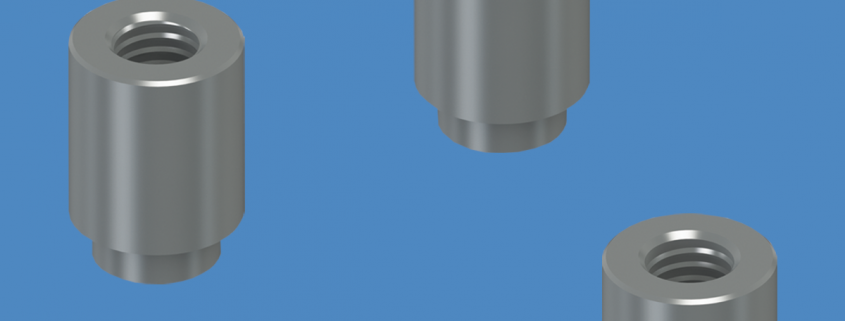

Keystone Electronics has introduced a new series of metric threaded standoffs specifically designed and packaged for use on PC Boards in the same manner as other SMT components.
Manufactured from steel with a tin plate, these standoffs can be added to the board using the same SMT equipment used to populate the board, reducing scrap and handling time while minimizing damage to a PCB that may occur while using traditional mounting products ensuring easy reflow soldering for reliable solder joints.
Metric threaded SMT standoffs are available in M3 threads in lengths from 02.00mm to 10.00mm and are supplied on tape and reel with Kapton tape on top surface for easy pickup. They are ideal for use with most vacuum and mechanical pick-and-place assembly systems.
| P/N | “H” Height (mm) | Parts per Reel | Thread | Outside Dia. (mm) | Mounting Hole (mm) | Solder Pad Dia. (mm) |
| 24881 | 02.00 |
1 500 |
M3 |
05.56 |
04.22 |
06.20 |
| 24882 | 03.00 | 1 000 | M3 | 05.56 | 04.22 | 06.20 |
| 24883 | 04.00 | 900 | M3 | 05.56 | 04.22 | 06.20 |
| 24884 | 06.00 | 650 | M3 | 05.56 | 04.22 | 06.20 |
| 24885 | 08.00 | 375 | M3 | 05.56 | 04.22 | 06.20 |
| 24886 | 10.00 | 300 | M3 | 05.56 | 04.22 | 06.20 |
These products are available thru Ramses – Keystone Europe MEA+India HQ. distributors network.
