Locking Coin Cell Battery Retainers.

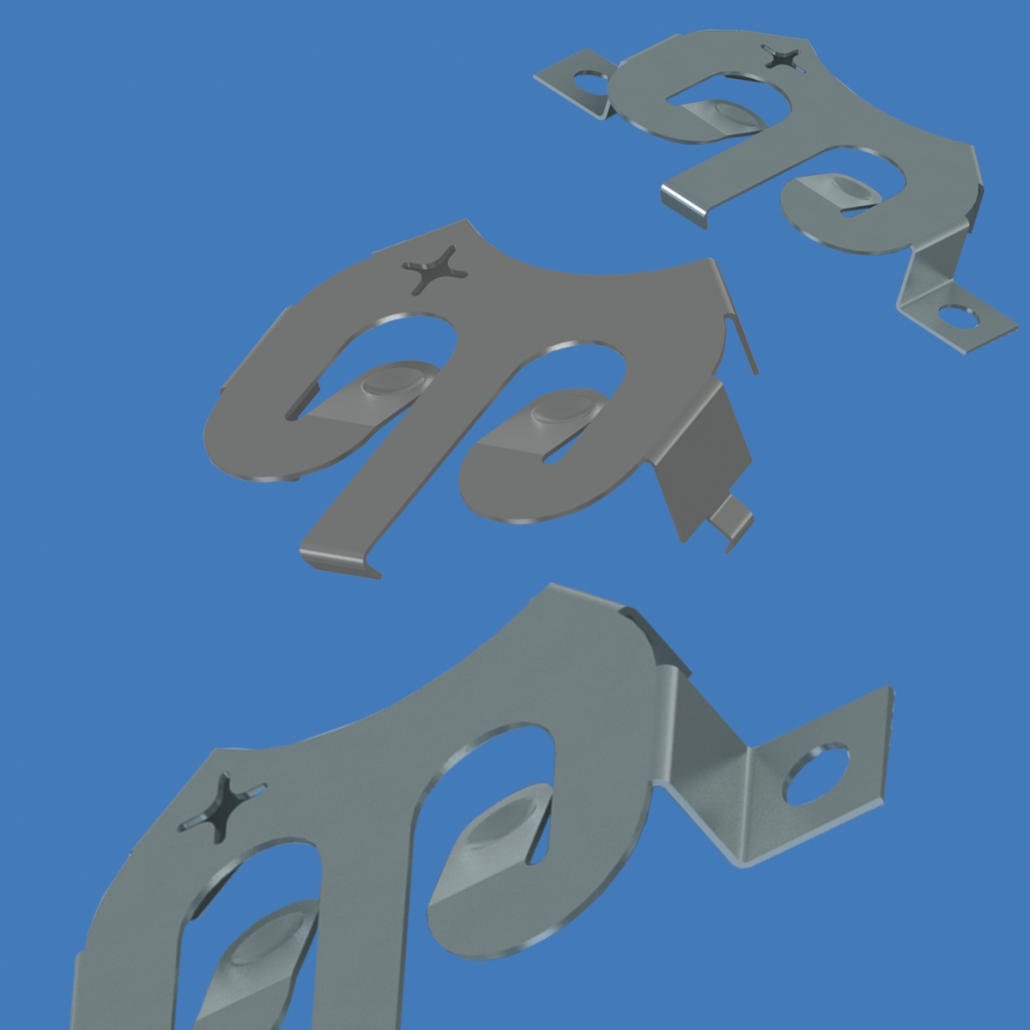

Keystone Electronics has introduced a new series of SMT and THM, low profile, coin cell battery retainers designed for high shock and vibration applications.
Engineered with a locking flange, these new devices firmly secure batteries within the retainers, while assuring low contact resistance. The low profile design makes these rugged and lightweight retainers ideal for hand held products or applications that have severe shock applications.
Manufactured from Phosphor Bronze with the polarity clearly-marked, these coin cell retainers accept 1220, 1632 and 2032 cells from all major manufacturers. These holders are nickel-plated for durability, low contact resistance and high temperature soldering.
The SMT versions are equipped with solder tails located outside of the retainer bodies to ease solder joint visual inspections. Retainers are designed to operate smoothly with vacuum and mechanical pick-and-place assembly systems. Thru-Hole application details retainers are compatible with lead free and traditional reflow processing.
| Cell Ref. | SMT version | SMT in T&R version | THM version |
| CR1220 | 2894 | 2894TR | 2895 |
| CR1632 | 2896 | 2896TR | 2897 |
| CR2032 | 2898 | 2898TR | 2899 |
These products are available thru Ramses – Keystone Europe MEA+India HQ. distributors network.
